SmCo Magnet

Multi-Shape Ring


SmCo magnet is mainly made of SmCo5 and Sm2Co17 via powder metallurgical and cast method. It has extremely and brittle property, so it can be made too much accuracy size. And it has outstanding thermal stability. SmCo magnet has various merits. So It is normal used in advanced technology field, such as Watch motor, Fiber Optics, Sensor.

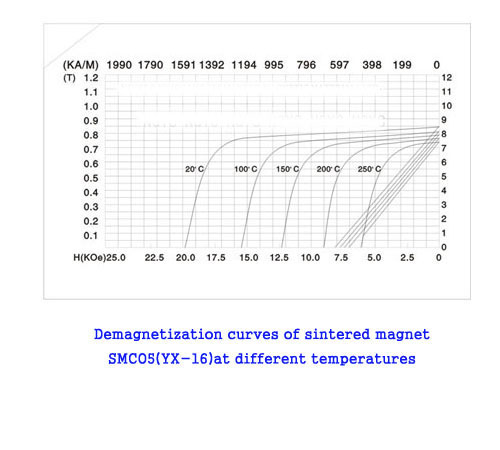

Application Curves Characteristics Grade

Application
Magnetic Separator         Advanced Motor           Servo Motor
Microphone & Speaker        Computer & Car           Instrument
Sensor & Watch

Characteristics

Symbol

Data

Density

G/cm3

8.0-8.4

Vickers Hardness

Hv

450-600

Recoil Permeability

μrec

1.10

Saturation Field Strong

KA/m

3200

Temp Coefficient of Br

%/≧

-0.05~-0.03

Temp Coefficient of Hcj

%/≧

-0.25~~-0.19

Grade

Code

Remanence

Coercivity

Intrinsic Coercivity

Max Energy Product

Courier Temp

Max Working Temp





Br

bHc

Hcj

(BH)max

TC

TW

T

KGS

KA/m

kOe

KA/m

kOe

KJ/m3

MGOe

SmCo5

MMS-18

0.85

8.50

620

7.8

1350

17

145-150

17-19

750

250

MMS-20

0.92

9.20

670

8.4

1250

16

150-175

19-22

750

250

MMS-24

1.00

10.00

680

8.5

1195

15

175-190

22-24

750

250

MMS-26

1.02

10.20

750

9.5

1195

15

195-215

24-6

750

250

Sm2Co17



MMSC-24

0.95-
1.02

9.5-
10.2

637-
732

8.0-
9.2

1433-
1990

18-
25

175-
190

22-
24

800

300

MMSC-26

1.02-
1.05

10.2-
10.5

748-
796

9.4-
10

1433-
1990

18-
25

195-
215

24-
26

800

300

MMSC-28

1.05-
1.08

10.5-
10.8

756-
796

9.5-
10

1433-
1831

18-
23

205-
220

26-
28

800

300

MMSC-30

1.08

10.8

780

9.8

955

15

220-240

28-
30

800

300

Physical and Manufacturing Characteristics

Characteristics

Symbol

Unit

Data

Density

D

G/cm3

7.40-7.60

Vickers Hardness

Hv

D.P.N

550-650

Compression Strength

C.S

N.mm2

600-780

Electrical Resistivity

Ω.cm *10000

--

1.8!2.0

Recoil Permeability

μrec

--

1.05

Temp. Coefficient of Br

%/≧



-0.12~~-0.11

Temp Coefficient of Hcj

%/≧



-0.7~~-0.5
