Magnetic Chucks



Magnetic Chuck is mainly applied to hold work piece of magnetic material to be ground on surface grinding machine, universal tool grinder, electrical process machine and be used as line-drawing tools of bench work for scraping and grinding. Using magnetic chuck to affix wok pieces to the machining table or surface save time over mechanical fastening or clamping.
Its characteristic is flexibility, cost-efficient, super powerful, easily operating.

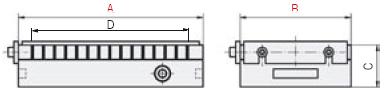

Rectangle:


Item No

Dimension (mm)

Weight (KG)

Pole Pitch

A

B

C

D

ReChuck1018

180

104

56

126

9.50

12+3

ReChuck1225

250

120

56

196

15.0

12+3

ReChuck1525

250

150

56

199

20.0

12+3

ReChuck1530

300

150

56

244

24.0

12+3

ReChuck1535

350

150

56

289

25.0

12+3

ReChuck2040

400

200

56

349

35.0

12+3

ReChuck2050

500

200

56

439

44.0

12+3

ReChuck3060

600

300

56

544

67.0

12+3

Round:


Item No

Diameter (mm)

Effective length (mm)

Height (mm)

Pole Pitch

Dead weight

RoChuck10000

100

100

50

1+3

3.0

RoChuck1215

150

117

50

1+3

7.0

RoChuck1316

160

129

50

1+3

8.0

RoChuck1720

200

169

52

1+3

12.0

RoChuck2125

250

213

52

1+3

19.0

RoChuck2730

300

265

54

1+3

28.0

RoChuck3740

400

365

58

1+3

53.0

RoChuck5660

600

553

62

1+3

134.0

We can follow customer requirement specification to do it, welcome your inquiry!
